Wilwood Brakes 140-2119-BD Brake Kit; Forged Dynalite

Product ID: W641402119BD

MFG Part Number: 1402119BD

Selected accessories will also be added to cart

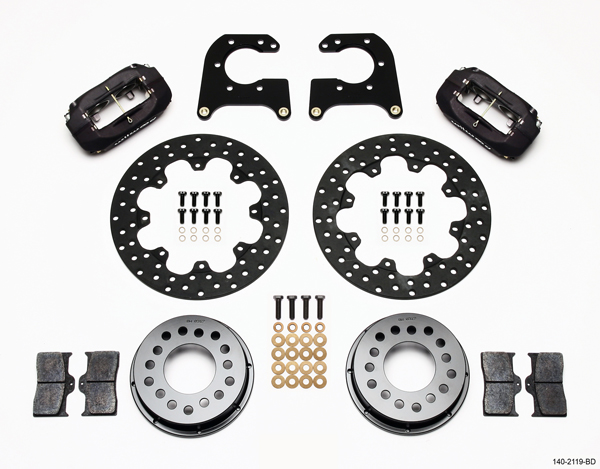

DRAG RACE USE ONLY For Use With New Big Ford With 3.150 Inch Diameter Axle Tube/ 2.5 Offset To Track Width; With BP-10 Metallic Brake Pads; 4 Piston; Black Oxide Steel 11.44 Inch x 0.35 Inch Drilled Rotor; With Caliper Mounting Brackets/ Rotor Hats With 5 x 4.50/ 5 x 4.75/ 5 x 5 Lug Patterns/ Rotors/ Two Calipers/ Pads/ Hardware
FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8 Inch plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
Recommended Use: Drag/ Dirt racing
Disc Brake Pad Material: BP-10 Metallic
Disc Brake Pad Overall Length: 100.6 Millimeter
Disc Brake Pad Overall Width: 60.5 Millimeter
Disc Brake Pad Overall Thickness: 12.4 Millimeter
Disc Brake Caliper Condition: New
Disc Brake Caliper Finish: Anodized
Disc Brake Caliper Color: Black
Disc Brake Caliper Material: Aluminum
Disc Brake Caliper Number of Pistons: 4
Disc Brake Rotor Design: Drilled
Disc Brake Rotor Finish: Black Oxide
Disc Brake Rotor Material: Steel
Disc Type: 1 Piece
Disc Brake Rotor Outer Diameter (MM): 290.58 Millimeter
Disc Brake Rotor Outer Diameter (IN): 11.44 Inch
Nominal Thickness (MM): 8.89 Millimeter
Nominal Thickness (IN): 0.35 Inch
Disc Brake Rotor Bolt Circle: 8 X 7 Inch
Includes Bracket: Yes
Includes Hardware: Yes
Includes Shims: Yes
Includes Brake Lines: No
True Bolt-On Kits Available For All Popular Muscle Car Rear Axles And Aftermarket Rears Built With Custom Axle Ends
Purpose Built For Sportsman Category Door Cars And Others With Full Functional Four-Wheel Disc Brakes
