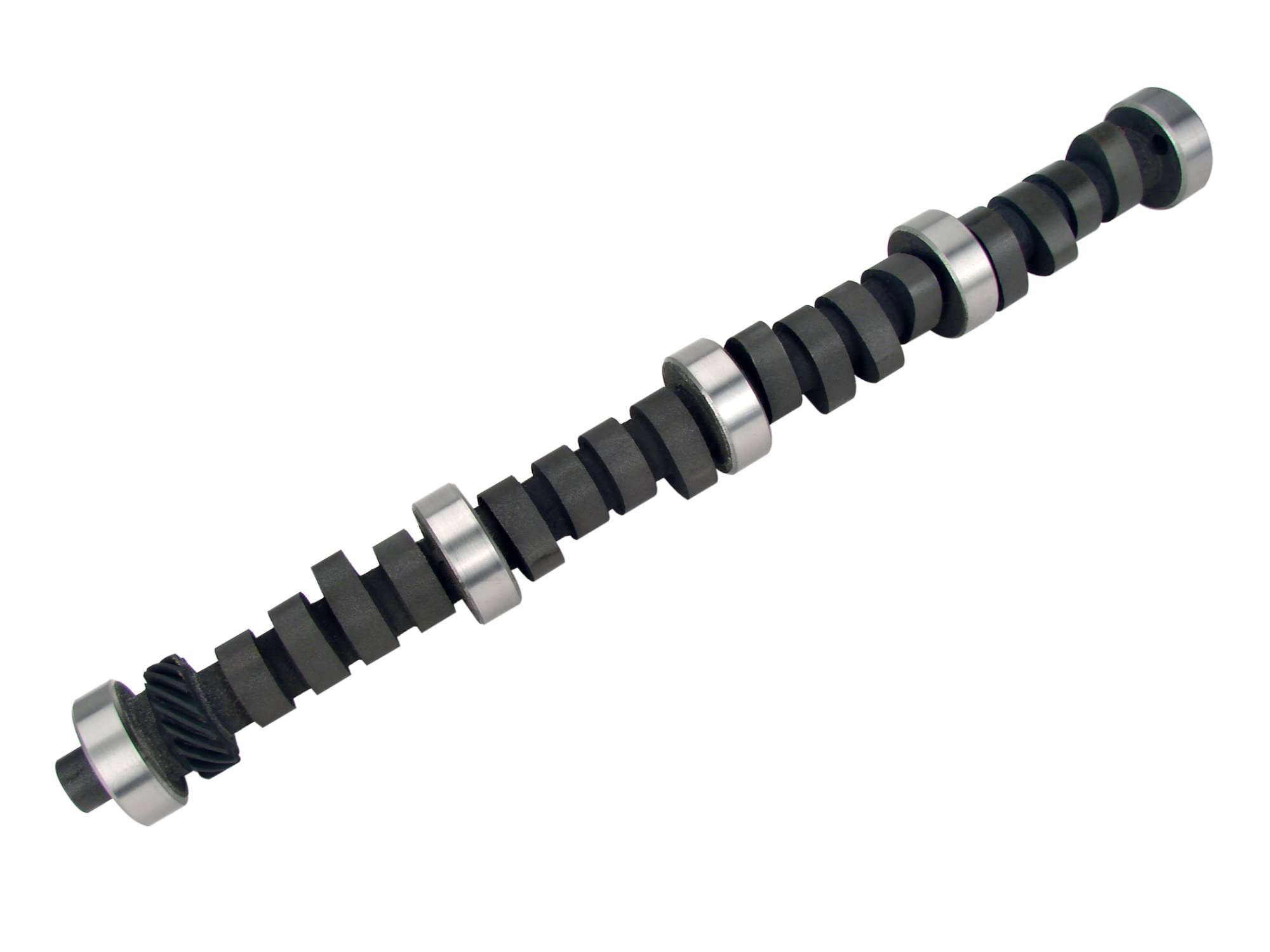

Xtreme Energy Cams™ are designed to take advantage of the latest improvements in Valve train components and the newest developments in Camshaft lobe design. Their aggressive lobe design produces better throttle response and top end Horsepower than other cams with the same duration. Xtreme Energy Cams™ also deliver increased Engine vacuum. Can be used in any street or street/Strip application where both throttle response and top end Horsepower are desired. Because these Camshafts use aggressive lobe designs, it is imperative that Valve springs, locks, retainers, pushrods, lifters, Rocker Arms and other related components be matched to the camshaft.
Engine Compatibility: Ford Windsor Small Block 3.6L-5.0L/221-302 Cubic Inch
Recommended Use: Mild Street Performance To Mild Race
Type: Hydraulic Flat Tappet
RPM - High: 5600
RPM - Low: 1300
Intake Duration At 0.050 Inch Lift (DEG): 218 Degree
Exhaust Duration At 0.050 Inch Lift (DEG): 224 Degree
Advertised Intake Duration (DEG): 262 Degree
Advertised Exhaust Duration (DEG): 270 Degree
Intake Valve Lift (IN): 0.493 Inch
Exhaust Valve Lift (IN): 1/2 Inch
Lobe Separation Angle (DEG): 110 Degree
Intake Centerline Angle (DEG): 106 Degree
Computer-Controlled Compatible: No
Grind Number: XE262H
Features
Their Aggressive Lobe Design Produces Better Throttle Response And Top End Horsepower Than Other Cams With The Same Duration
Also Deliver Increased Engine Vacuum
Limited 1 Year Warranty
